Content vs Time Template

Overview and Key Concepts​

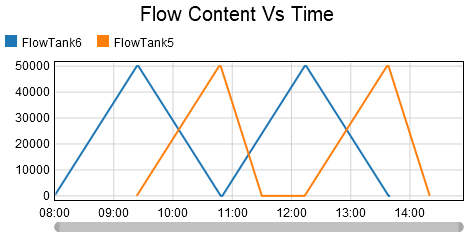

This template creates a line chart. This is contrary to the WIP vs Time template, which creates a stair-step chart. Each specified object is represented by a different color, which shows the flow (or bulk) content over time.

Chart Types​

This section describes the Line Chart Template. The Content can be visualized using the following chart templates:

  • Bar chart (current value)
  • Histogram (distribution since start)
  • Table (current value)
  • Line chart (history vs. time)

The Options Tab​

The Options tab has the following properties:

  • Objects - Specifies the objects to include on the chart. See Adding Objects for more information.

The Settings Tab​

The Settings tab is identical to the Time Plot Settings tab. For more information, see Time Plot Settings.

The Colors Tab​

The Colors tab is identical to the Time Plot Colors tab. For more information, see Time Plot Colors.

The Advanced Tab​

This template, like all templates, uses the Advanced Tab. For more information, see Advanced Tab.
